Stud Welding Machines

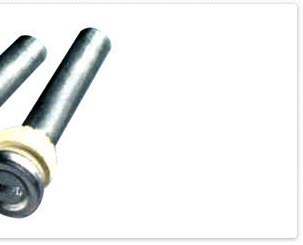

We manufacture a qualitative and durable range of shear connectors.These shear connectors are designed in such a way that its composite structure can make the best use of two 2 different material joined together in the connector.

• In steel and concrete composite beams, concrete is assumed to take most or the entire compression load while steel takes all the tension
• The 2 materials in the composite structure need to be firmly held together to make the structure rigid and strong
• In steel and concrete composite beams the 2 materials are held together my means of headed shear connectors

Advantages of composite structures:

• Reduction in concrete as well as steel
• Greater strength of the structure
• Greater speed of construction
• Lesser floor sections

Ask for Price

Product Details :

Brand	Artech
Color	Black, white, yellow, red, blue
Material	Carbon steel
Connector type	Shear studs connector

Advantages of Shear Connectors

• Easy to use
• Economical
• Very fast installation as compared to conventional processes
• More consistent as the weld parameters are predetermined and programmed in the machine itself.
• Minimum human intervention

Through deck welding is also possible where the Headed Shear Connector is welded through a formed galvanized sheet onto a steel beam. Concrete is then poured over the formed sheet and the shear connectors.

Ask for Price

Advantages of Composite Structures of Shear Connectors

• Reduction in concrete as well as steel.
• Greater strength of the structure
• Greater speed of construction
• Lesser floor sections.
